Technical Rider Leerer Beutel

Mehrzweckraum

Mixing Console	Midas M 32 & DL 32
Amplifier for FOH	DYNACORD IPX10: 8
Monitor Amps	CL 1600 & 2x CL 2000 for monitoring CL 1600 nearfield
Speakers	2x DYNACORD sub 18 2x DYNACORD vl 152 (flown) 2x DYNACORD d 15-3 (sidefills flown)
Monitors	6x DYNACORD M 12

Piano	YAMAHA - grand piano C3 tuned to 442 Hz
YAMAHA - drum - set	18" bass drum bass drum pedal 22" bass drum TAMA Bass drum pedal Snare (14 "x8") & Snarestand 3 tom (10" / 12" / 13") 14" floor tom 16" floor tom 1 hihat stand TAMA Iron Cobra HH605 4 cymbal stands TAMA Cymbal Stand HC83BW 1 drum seat 1 carpet NO CYMBALS!
Guitar amp	Fender '65 Twin Reverb
Bass amplifier	Glockenklang Blue Soul & Quattro 4x10" cabinet

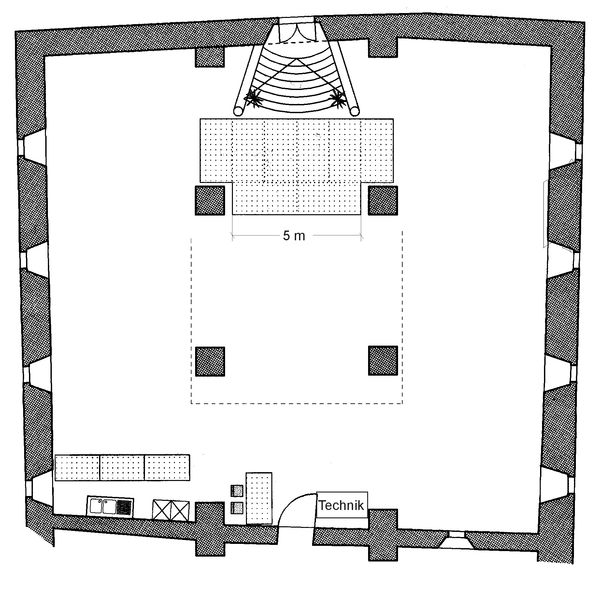

Stage	between the columns 5m wide behind the columns 7.50 m wide Stage depth 3.70 m Stage height 0.40 m 2 stage elements á 0.5 m x 1 m as RISER 4 stage elements á 2 x 1 m as RISER

Microphones

2x ELECTRO VOICE RE 20

3x ELECTRO VOICE RE 200

2x ELECTRO VOICE ND 66

4x ELECTRO VOICE RE 510

1x ELECTRO VOICE ND 868 Bass Drum

3x ELECTRO VOICE ND 468 Snare/Toms

1x SHURE Beta 91A

3x SHURE SM 58

7x SHURE SM 57

2x Sennheiser E 945

1x CAD E100

2x Neumann KM 184

2x AKG C1000

5 DI - Box

2 BSS AR-133

Microphone stands

10 large stands with telescopic boom

10 small stands with telescopic boom

Lighting

Licon FX

Stage lighting front: 6x Showtec Performer 1000 LED MKII

Stage lighting rear: 7x Cameo Thunder Wash 600 RGBW
